AT629 Vehicle-Mounted Counter-FPV Equipment

Vehicle-mounted Four-sided Formation Counter-UAV Equipment

AT629 Vehicle-Mounted Counter-FPV Equipment

AT629 Vehicle-Mounted Counter-FPV Equipment

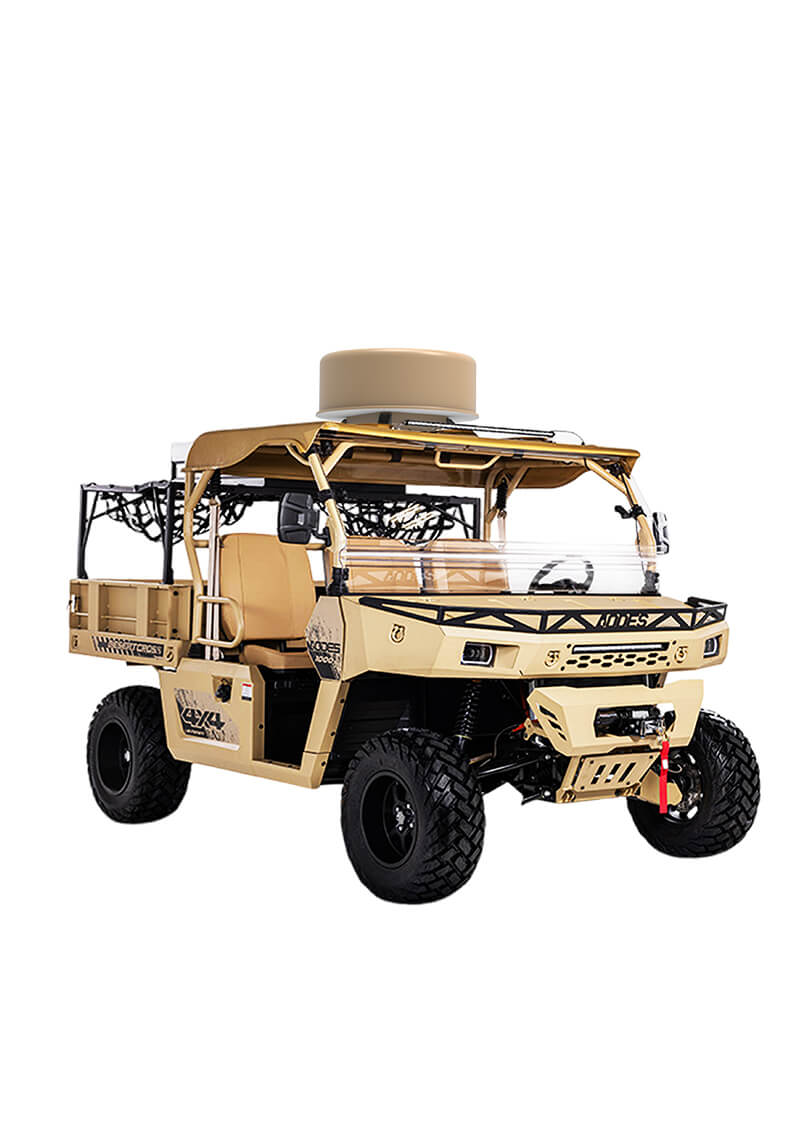

A high-mobility low-altitude protection system specially designed for light ATV vehicles, addressing the core issues of traditional countermeasure equipment such as high power consumption and inconvenient deployment. It adopts SDR-based Agile Jamming technology to build a complete "omnidirectional detection + precise countermeasure" protection loop, achieving full-band, zero-blind-spot coverage. lt can capture target signals from a long distance in advance and efficiently intercept all DlY FPV drones within range. lt operates stably in complex battlefield environments such as mountains and deserts, compatible wih light ATV vehicles like UTVs and Dongfeng Mengshi command vehicles, providing low-altitude security for military patrols, border defense, and urban security scenarios.

+8615038685357

E-mail

sales@awpantidrone.com

Now Inquiry

File Download

Please submit a message first

Features

Mobile and Flexible

Vehicle-mounted design supports fast moving and arrival at the site in short time. Supports mobile detection and countermeasure

Multi-Function Integrated

Integrating passive detection, RF jamming and navigation decoy functions, with 5km ultra-long omni-directional detection and 3km automatic omni-directional defense

No Modification

Using patented FPC ultra-thin wire technology, assembly can be completed with simple installation without damaging the body structure. It is suitable for various brands of SUV vehicles

Investment Protection

Based on SDR architecture, algorithm upgrades can be done through software, without hardware replacement

Low Power Consumption

The on-board battery can be used to power equipment without the need for a power generator

Intelligent Battery Management

Equipped with the in-car battery management system that supports multiple power supply methods and adaptively adjusts charging power

Specifications

Parameter		Description
Detection Unit	Detection frequency band	300MHz~1200MHz
	Detection informafion	FPV drone presence
	Detection direction	360° omnidirectional
	Detection range	1 km
Jamming Unit	Jamming mechanism	SDR ( Software Defined Radio ) technology
	Jamming frequency band	300 MHz~1200 MHz
	Jamming angle	360°omnidirectional
	Jamming range	150 m( j/c ratio = 1:4)
General Parameters	Alarm method	Audible and visual alarm
	Output power	120 W
	Power consumption	450 W
	Power supply	On-board power supply, voltage 220V
	Protection level	IP66
	Size (device)	Ф832 mm x H493 mm
	Weight (device)	29 kg
	Working temperature	-40℃~+55℃
About the Vehicle	Engine type	V-twin with turbo water-cooled diesel engine
	Displacement	999 cc
	Max power	42 kw/ 3600 RPM
	Max torque	150 N.m / 3000 RPM
	Load capacity	700 kg

*Special Announcement: Due to the conversion period between product updates and online displays, there may be differences between the graphics and textual parameters shown on the page and the actual product. The graphics and textual contents are not used as the actual delivery basis. The specific product and technical parameters are subject to the determined actual product configuration. Customers who intend to purchase, please contact AWP sales personnel in a timely manner to confirm. AWP reserves the right to change image parameters and provide final interpretation.

Production Display

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. We′re pleased to get your inquiry and we will come back to you as soon as possible.

FAQ

Why AWP?

AWP is one of China's largest C-UAS solution providers. As a high-tech company, we boast a top-tier R&D team, state-of-the-art manufacturing and testing facilities, and customer-focused service.

Why SDR?

Based on SDR architecture, algorithm upgrades are performed via software, eliminating the need for hardware replacement, This economical approach ensures long-term protection for your investment.

Why AWP SDR?

AWP's SDR employs a digital modulation interference source, effectively disrupting various types of UAVs, with exceptional performance against FPV drones. AWP is pioneering the era of algorithm-based counter-UAV systems.
