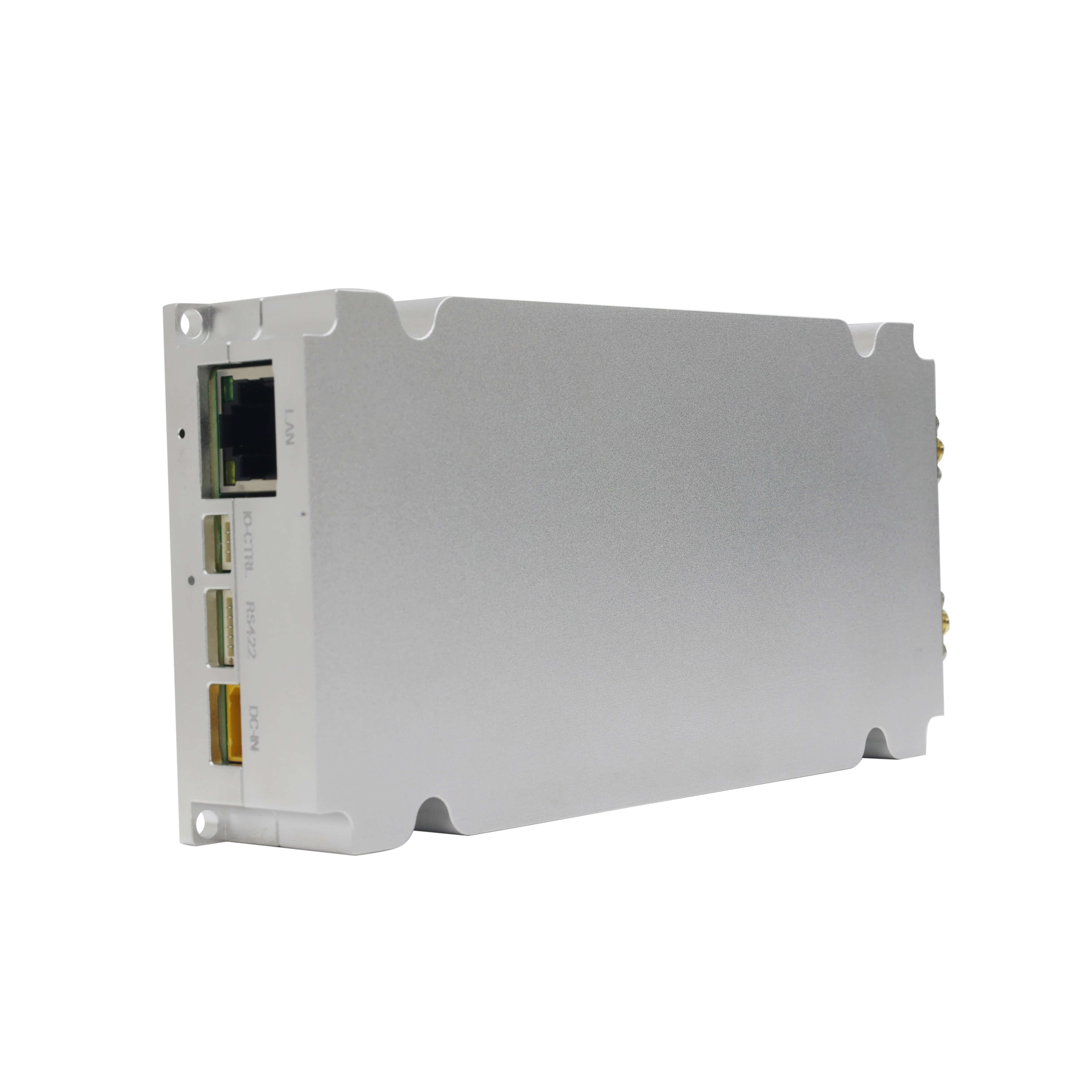

M2001 SDR UAV Detection Module
A high-performance passive detection module based on SDR architecture, designed for drone signal detection and identification. lt supports 100MHz-6000MHz wideband scanning, detecting consumer drones (DJl/Autel), DIY FPV, WiFi drones, and excels at DlY FPV detection. Capable of DJI protocol and standard RlD analysis, it features a compact design with standardized interfaces for easy integration.
Category:
Key words:
SDR Counter-UAV Digital Module
Signal uav jammer module
Sdr c-uav digital module
Please submit a message first
SDR-based,covering 100MHz-6000MHz with stealthy operation and strong anti-iamming capability.
Integrates with counter.UAV digital modules for agile jamming and enhanced neutralization efficiency.
Standard interfaces,supports secondary integration, highly adaptable.
Detects consumer drones (DJI/Autel), DIY FPV, WiFi drones, and supports DJI protocols and RID analysis.
Compact and lightweight, it is compatible with portable, fixed, and vehicle-mounted configurations.
Leveraging SDR architecture, it supports algorithm updates and mainfenance without hardware replacement.
Features
Specifications
| Operating mechanism | SDR radio detection technology |
| Spectrum range | 100MHz-6000MHz |
| Key bands | 300MHz~1.2GHz/2.4GHz/5.2GHz/5.8GHz |
| Detecable drones | Conventional drones ( DJI / Autel, etc. )/ DIY FPV drones /WiFi-based drones, etc. |
| Detection capabilities | Supports detection of multi-type of drones, DJI DronelD decryption,Remote lD acquisition/analysis, as well as FPV flight control and video transmission signal monitoring. |
| Response time | < 3s |
| Communication interface | RJ-45 |
| Operation voltage | DC 9-30V |
| Power consumption | < 10W |
| Size | 70*140*20mm( without interfaces ) |
| Weight | 300g±10g |
| Operation temperature | -30℃~+55℃ |
| Storage temperature | -40℃~+70℃ |
Production Display
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. We′re pleased to get your inquiry and we will come back to you as soon as possible.
FAQ
Why AWP?
AWP is one of China's largest C-UAS solution providers. As a high-tech company, we boast a top-tier R&D team, state-of-the-art manufacturing and testing facilities, and customer-focused service.
Why SDR?
Based on SDR architecture, algorithm upgrades are performed via software, eliminating the need for hardware replacement, This economical approach ensures long-term protection for your investment.
Why AWP SDR?
AWP's SDR employs a digital modulation interference source, effectively disrupting various types of UAVs, with exceptional performance against FPV drones. AWP is pioneering the era of algorithm-based counter-UAV systems.
Would your company be capable of undertaking OEM and ODM projects?
Yes. Our highly skilled R&D and manufacturing team brings extensive expertise and experience, enabling us to expertly manage customized OEM and ODM projects.
