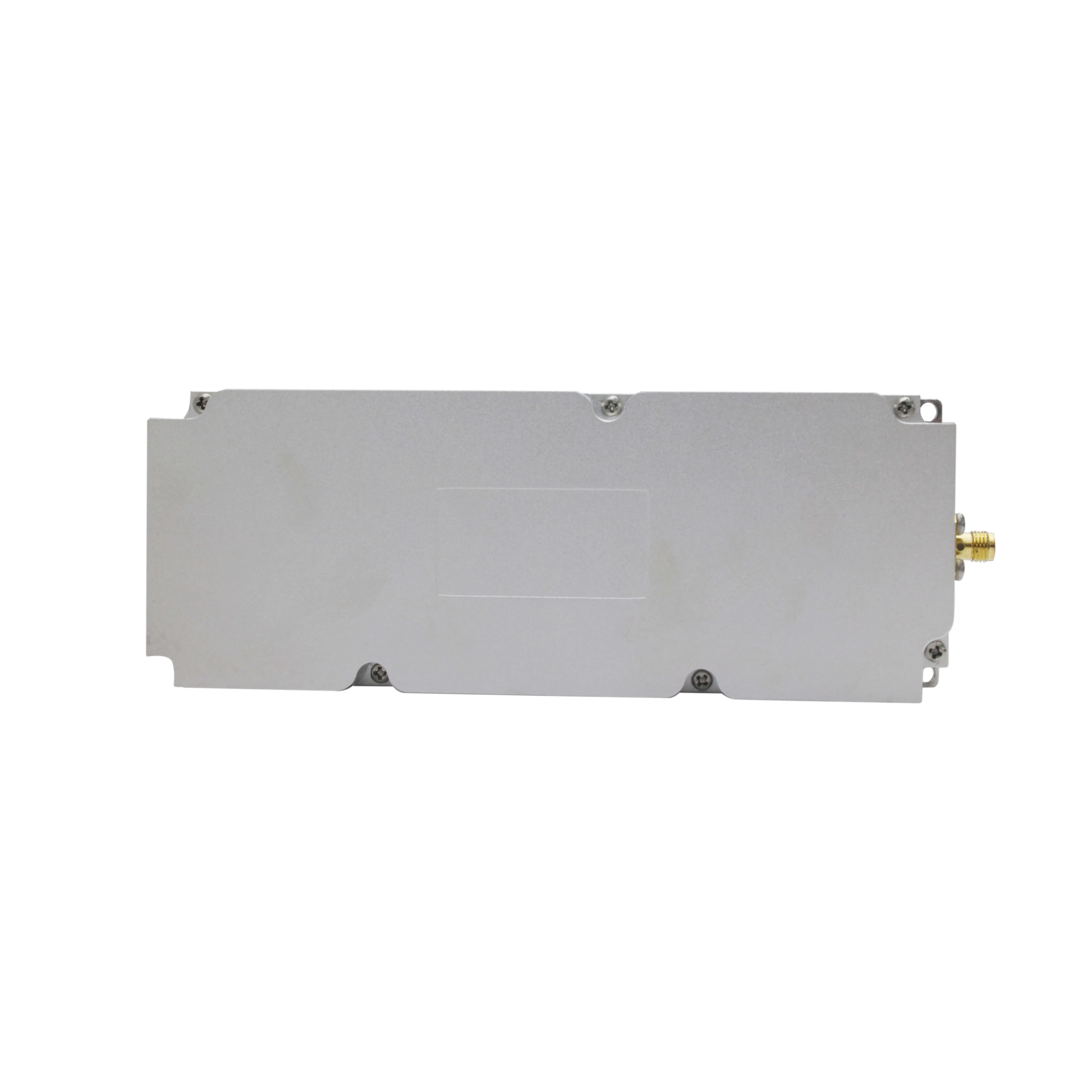

M1002 Broadband SDR Counter UAV FPV Digital Module
Designed specifically for countering DlY FPV drones, this SDR-based module integrates a digital source and a broadband power amplifier to precisely jam mainstream DlY FPV protocols like ELRS and TBS Crossfire. The FPGA-powered digital source generates versatile digitally modulated jamming signals covering 300MHz-1200MHz, amplified by the broadband PA for effective suppression of fast, hard-to-jam FpV drones. Compact and modular with standardized interfaces, it enables rapid integration into various counter-drone systems, delivering a professional solution against DIY FPV threats.
Category:
Key words:
SDR Counter-UAV Digital Module
Signal uav jammer module
Sdr c-uav digital module
Please submit a message first
Covers all DIY FPV drone control protocols (e.g.. ELRS / TBS Crossfire).
Compact and lightweight, it is compatible with portable, fixed, and vehicle-mounted configurations.
Integrates with detection modules to analyze DlY FPV drone control protocols for high-efficiency jamming.
With flexible interfaces and strong adaptability, it offers one-stop component options for seamless product deployment.
It supports software-upgradable jamming codes to ensure sustained effectiveness while significantly reducing investment costs.
Features
Specifications
| Operating Frequency | 300MHz~1200MHz |
| Qutput power | 50W Max ( 47dBm ) |
| Max bandwidth | 100MHz |
| RF output interface | SMA/50Ω |
| Control interfaces | IO enables,RS-422 communication |
| Operation voltage | DC 28-32V |
| Operation current | 4.5A Max |
| Standby power consumption | 5W |
| Size | 58*155*29mm(without interfaces ) |
| Weight | 340g±10g |
| Operation temperature | -40℃~+55℃ |
Production Display
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. We′re pleased to get your inquiry and we will come back to you as soon as possible.
FAQ
Why AWP?
AWP is one of China's largest C-UAS solution providers. As a high-tech company, we boast a top-tier R&D team, state-of-the-art manufacturing and testing facilities, and customer-focused service.
Why SDR?
Based on SDR architecture, algorithm upgrades are performed via software, eliminating the need for hardware replacement, This economical approach ensures long-term protection for your investment.
Why AWP SDR?
AWP's SDR employs a digital modulation interference source, effectively disrupting various types of UAVs, with exceptional performance against FPV drones. AWP is pioneering the era of algorithm-based counter-UAV systems.
Would your company be capable of undertaking OEM and ODM projects?
Yes. Our highly skilled R&D and manufacturing team brings extensive expertise and experience, enabling us to expertly manage customized OEM and ODM projects.
