  • AT-627 Portable FPV countermeasure equipment

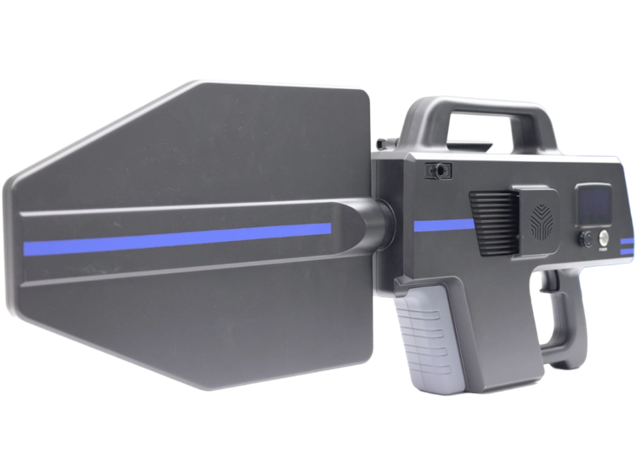

Vehicle-mounted Four-sided Formation Counter-UAV Equipment

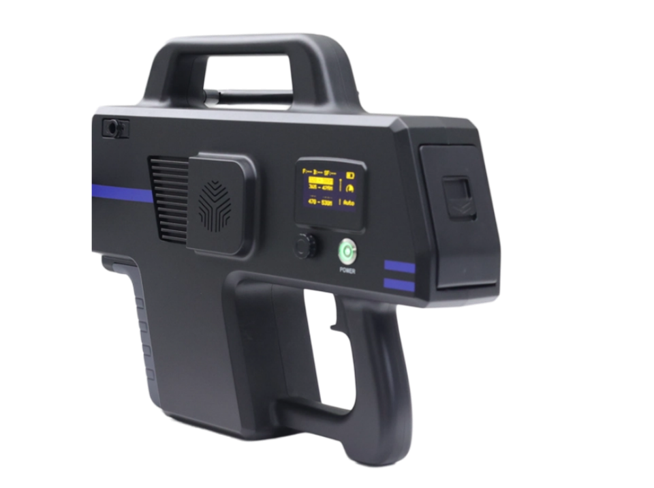

AT-627 Portable FPV countermeasure equipment
AT-627 Portable FPV countermeasure equipment
AT-627 Portable FPV countermeasure equipment

AT-627 Portable FPV countermeasure equipment

A portable countermeasure device specially designed for FPV drone racers. It adopts SDR 2.0 agile jamming technology and integrates early warning and countermeasure functions into one unit, capable of detecting the remote-control signals of various FPV drone racers and implementing effective countermeasures.
Featuring a compact structural design, the device is flexible and highly portable. Its IP54-rated rugged housing delivers excellent heat resistance and corrosion protection, making it suitable for diverse application scenarios including individual soldier defense, counter-terrorism and stability maintenance.

WhatsApp

+8615038685357

E-mail

sales@awpantidrone.com

Now Inquiry
File Download

Please submit a message first



Features


Mobile and Flexible
Vehicle-mounted design supports fast moving and arrival at the site in short time. Supports mobile detection and countermeasure
Multi-Function Integrated
Integrating passive detection, RF jamming and navigation decoy functions, with 5km ultra-long omni-directional detection and 3km automatic omni-directional defense
No Modification
Using patented FPC ultra-thin wire technology, assembly can be completed with simple installation without damaging the body structure. It is suitable for various brands of SUV vehicles
Investment Protection
Based on SDR architecture, algorithm upgrades can be done through software, without hardware replacement
Low Power Consumption
The on-board battery can be used to power equipment without the need for a power generator
Intelligent Battery Management
Equipped with the in-car battery management system that supports multiple power supply methods and adaptively adjusts charging power

Specifications


PortableYes
Weight<4.5kg
ObjectiveFPV
Detection distance>1km
Countermeasure distance

100m(dry run ratio1:3)

Standby time

More than 6 hours

Cumulative interference timeMore than 1 hour
Display screen2.42 inches
Protection level

IP54

Transmission power

≤35W

Detection frequency band300 MHz to 1.2 GHz
Interference frequency band300 MHz to 1.2 GHz
Size790*310*110mm±5mm
Emission angleRoll≥60°, pitch≥90°
Detection response time＜5s
Interference response time<5s
Interference response time<5s
Storage temperature-40℃ to +70℃
Operating temperature-30℃ to+55℃
Countermeasure frequency band lockAutomatic (default) / Manual
Total power consumption ≤100W



*Special Announcement: Due to the conversion period between product updates and online displays, there may be differences between the graphics and textual parameters shown on the page and the actual product. The graphics and textual contents are not used as the actual delivery basis. The specific product and technical parameters are subject to the determined actual product configuration. Customers who intend to purchase, please contact AWP sales personnel in a timely manner to confirm. AWP reserves the right to change image parameters and provide final interpretation.

Production Display

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. We′re pleased to get your inquiry and we will come back to you as soon as possible.

factory-2
factory-3
factory-1
Testing-1
factory-4
RD-1
RD-2
RD-3
Testing-3
2
Testing-2
1

FAQ

Why AWP?

AWP is one of China's largest C-UAS solution providers. As a high-tech company, we boast a top-tier R&D team, state-of-the-art manufacturing and testing facilities, and customer-focused service.

Why SDR?

Based on SDR architecture, algorithm upgrades are performed via software, eliminating the need for hardware replacement, This economical approach ensures long-term protection for your investment.

Why AWP SDR?

AWP's SDR employs a digital modulation interference source, effectively disrupting various types of UAVs, with exceptional performance against FPV drones. AWP is pioneering the era of algorithm-based counter-UAV systems.

Would your company be capable of undertaking OEM and ODM projects?

Yes. Our highly skilled R&D and manufacturing team brings extensive expertise and experience, enabling us to expertly manage customized OEM and ODM projects.
